How To Use
Remove the clamps from the battery.
Plug jumper cable into the jump starter socket.
Red clamp connect “+” Black clamp connect “-“.
Press power on jump starter. (make sure 2 lights on)
Start the vehicle.
Remove the plug from the Jump Starter
Note: If there is any other questions please read the user’s manual carefully before you use.
If you follow the above steps still couldn’t jump start the vehicle, press “Boost” on jumper cable.

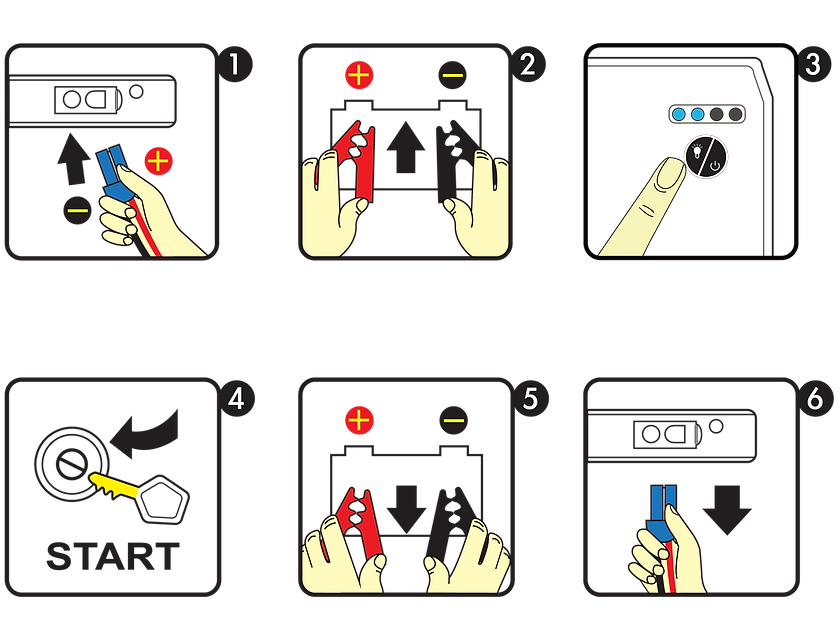

How To Jump Start the Vehicle
LED Torch- Torch, SOS, Flash
BOOST button
Output / Input
Current
Standby Time Mode
Operating Temp.
Product Dimension
Package
Accessories
A. Power On-Q5
B. Micro USB cable
C. User Manual (Traditional Chinese/English)
D. DC Car Charger
E. Premium Pouch
F.14V AC adaptor
G.Smart Jumper Clamp
Output1 : 5V/2A for Phones, Tablets and Gadgets
Output2 : 12V/10A
Output3 : 12V Output
Input 14V/1A
Q5
Capacity
15000 mAh
Up to 6 months
-20℃~60℃/-4F~140F

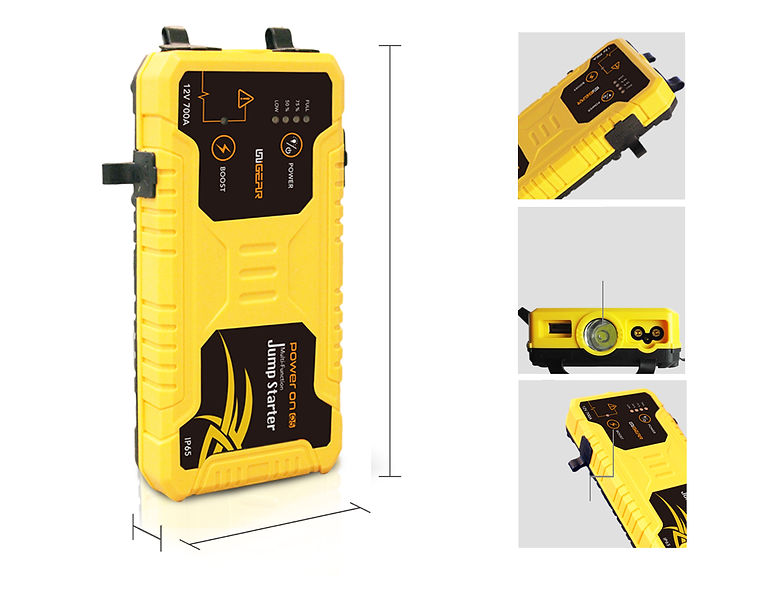

18.5*8.7*3.2 cm
Start Current 300A
Peak Current 600A
6 pcs per carton
Size: 41*27*26.5cm/ GW: 9.0 KG, NW: 7.8 KG
Specification
Model Name
18.5 cm
8.7 cm
3.2 cm
A
B
C
D
E
F
G
Weight
610 g
